TGM Model B620AC 6,000 PPH Rotary Tube Filler and Fold and Roll/Hot Air Sealer

Loeb # 78332 Model B620AC
OEM T G M Technomachine

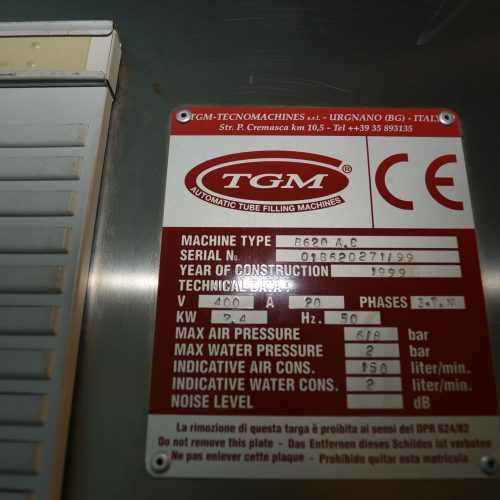

Year 1999 Serial 01B62027199
Electrical 3/400/50 Location LOEB East Bldg #1 West Side
Condition As is Size 1.00
Lease for only 2,068.91 / mo. Rent for only N/A
Have one of these to sell? ITEM SOLD: Need One Of These?

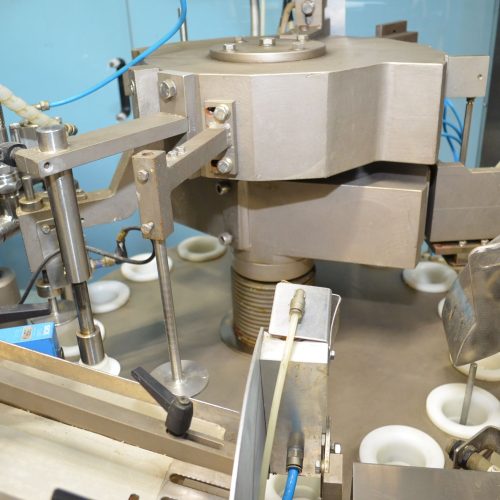

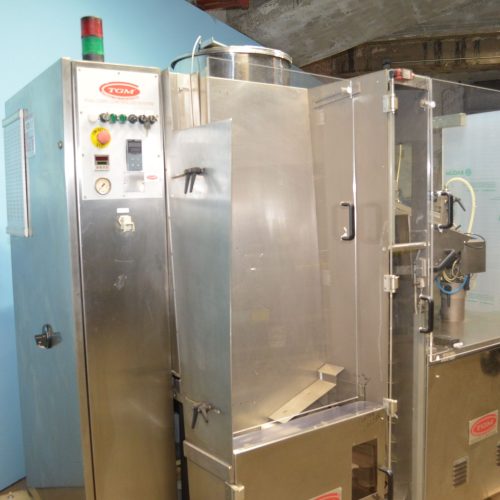

TGM Model B620AC Rotary Tube Filler and Tube Sealer. 16 Station Rotary Table. Speeds up to 6,000 PPH, Parts Per Hour. Single Filling Head with Diving Nozzle. Minimum and Maximum Tube Dimensions for Metal Tubes 10mm-42mm Diameter x 50mm-240mm Length. Minimum and Maximum Tube Dimensions for Plastic Tubes 10mm-50mm Diameter x 50mm-240mm Length. Tube Pucks Included are Approx. 2 in Diameter at Top and 1 1/2 in Diameter at Bottom. Single Head Filler with 1/2 in Diameter Nozzle. 20 in Diameter S/S Product Hopper. 2 1/2 in W Hot Air Seal Bars. Fold and Roll Crimping System for Closing Metal Tubes. Plastic/Laminate Tubes Sealed by Hot Air. S/S Trim Discharge Chute. 3 1/4 in W S/S Discharge Chute. 48 in Tall x 19 in W x 8 in D Tube Bulk Feed Hopper. 6 in L Tube Pockets in S/S Elevator. Adjustable Width Tube Infeed Chute. All S/S with Plexiglas Enclosure. Siemens Simatic HMI. Remote Start/Stop Box. 400 V, 3 Ph, 50 Hz, 20 Amp, 7.4 kW. Max Air Pressure 6/8 bar, Max Water Pressure 2 bar, Air Consumption 150 L/Min, Water Consumption 2 L/Min.
