Sabel Model SE15 Auto Bottom Load 15 CPM Hot Melt Case Packer
Loeb # |
71943 |
Model |
SE15 |
OEM |
Sabel Engineering Corp |
Year |
1999 |
Serial |
997 |
Electrical |
3/230/60 |
Location |
LOEB East Bldg #4 West Side |
Condition |
Running |
Size |
15.00 |
Lease for only |
829.39 / mo. |
Rent for only |
N/A |
Have one of these to sell?
ITEM SOLD: Need One Of These?

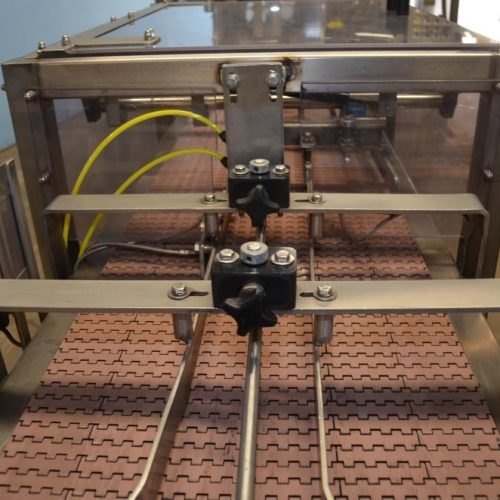

Sabel Model SE15 Automatic Bottom Load Hot Melt Case Erector and Packer. Production Rates Up To 15 Cases Per Minute. ~ Theory of Operation: The Lane Divider Splits The Incoming Lane Into Balanced Lanes For Collation. The Infeed Conveyor Transfers Product From Lane Divider to Case Packer. Product is Collated in the Proper Pack Pattern and Located on the Elevator For Case Loading. A Flat Case is Pulled From the Case Magazine, Opened and Positioned Above the Elevator. The Collated Product is Elevated Into the Case Through its Open Bottom. The Bottom Inner Flaps are Folded Around The Elevator Platform and the Case is Pushed Free of the Elevator. Case is Folded and Sealed with Glue. Case is Discharged. ~ 43 in L x 21 in W Low Level Case Blank Magazine with Vacuum Cups, Capable of Running RSC and HSC Style Cases. Case Size Range 12 in - 16 in Long, 6 in - 12 in Width, 6 in - 12 in Height. (2) 4 1/2 in W Container Infeeds From Lane Divider Into Collator Section. 12 in x 9 1/2 in Chamber For Product Loading in Elevator Section, 10 1/2 in x 8 1/4 in Product Elevator Platform, Approx 12 in W Case Discharge Set to 10 3/8 in W, with Adjustable Rails. Nordson Model Pro Blue 4 Hot Melt Unit with Two Nozzles For Top and Bottom Sealing (S/N SA007E38430). 18 in W x 11 ft L Plastic Interlocking Chain Infeed Conveyor with Lane Divider. 4 3/4 in W Single File Infeed Lane, Lane Divider Feeds Into (2) 4 3/4 in Discharge Lanes All with Adjustable S/S Rails, Gast 3 HP Rotary Vane Vacuum Pump. Digital Annunciator Display, 230 V, 3 Ph, 60 Hz, 80 PSIG.
