450 Gallon S/S Horizontal Jacketed Rotary Coil Cooker For Jams and Jellies

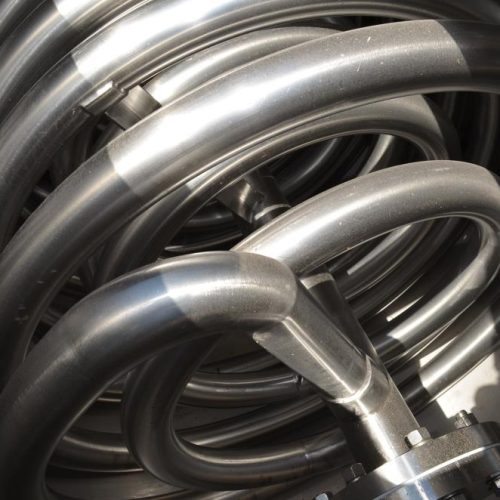

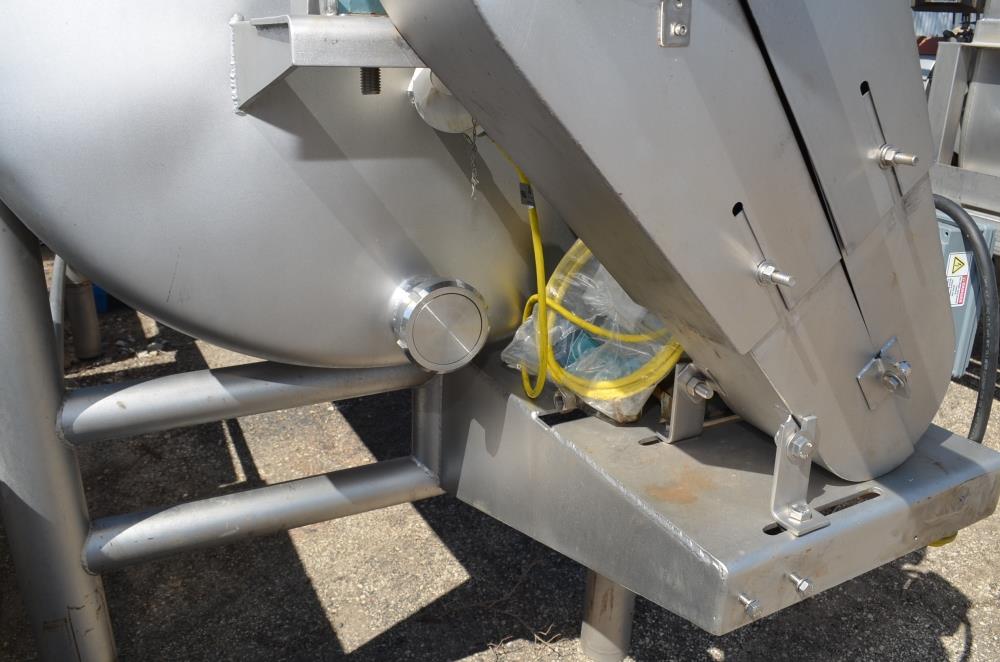

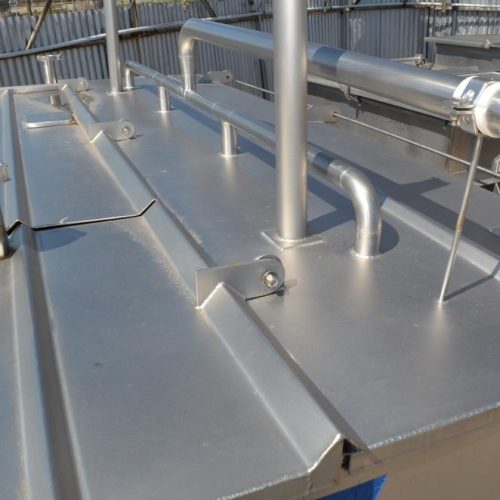

450 Gallon (approx.) S/S Horizontal Jacketed Rotary Coil Cooker For Jams and Jellies. Non Rated Jacket. Electrically Driven 2 HP Chain Drive. 96 in L x 37 in W x 42 in D Trough. 2in Diameter S/S Internal Rotary Pipe Coil with Inner and Outer Coils. 78 in Total Coil Length. 35 in Coil Diameter. (2) S/S Hinged Covers. (1) 3 in Diameter and (2) 2 in Diameter Tri-Clamp Top Inlets. (2) 3 1/2 in Diameter Side Bottom Outlets, One On Each End. Discharge Height 32 1/2 in. Mounted on (4) S/S Legs. (2) 80 in L x 8 in Diameter S/S Shell and Tube Heat Exchangers, with 7 3/4 in Diameter Flanged Inlets, 2 1/2 in Diameter Tri-Clamp End Inlets, 2 in Diameter Tri-Clamp End Inlets.
