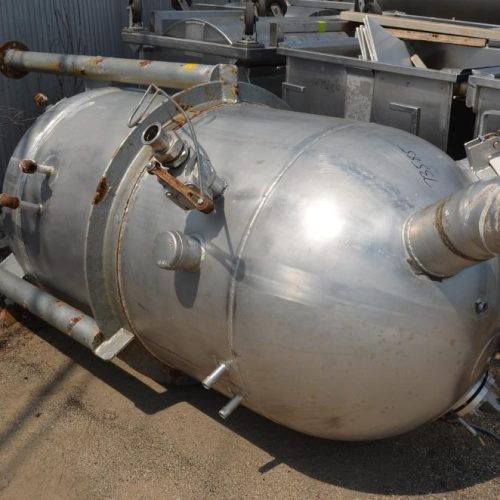

200 Gallon (Approx.) Hamilton S/S Vertical Jacketed Vacuum Kettle. Hemispherical Top and Bottom. Bottom Only Jacket. 48 in Straight Side, 36 in Diameter. 20 in Deep Hemispherical Top and Bottom. Maximum Working Pressure Vessel 26 Vac at 200 Degrees F, Jacket 40 PSI at 200 Degrees F. Maximum Working Temperature For Vessel and Jacket 275 Degrees F. Minimum Design Metal Temperature Atmos at 45 PSI. 3 in Diameter Threaded CBO, 6 in Approx. Discharge Height. (3) 4 in Diameter C/S Pipe Legs. 16 in Diameter Top Manway with Clamp Down Cover and 4 in Diameter Sight Glass. 2 in Diameter Threaded Side Top Inlet with Manual Valve. 6 in Diameter Top Vent. Side Top Mounted Interior Light. Temperature Probe. NB# 294.
