Westfalia Model KSA2001076 S/S Solid Bowl Disc Centrifuge Separator
| Loeb # |
70638 |
Model |
KSA2001076 |
| OEM |
Westfalia Seperator |
| Year |
1991 |
Serial |
1702591 |
| Electrical |
3/460/60 |
Location |
LOEB East Bldg #2 East Side |
| Condition |
As is |
Size |
35.00 |
| Lease for only |
2,688.67 / mo. |
Rent for only |
N/A |
Have one of these to sell?
ITEM SOLD: Need One Of These?

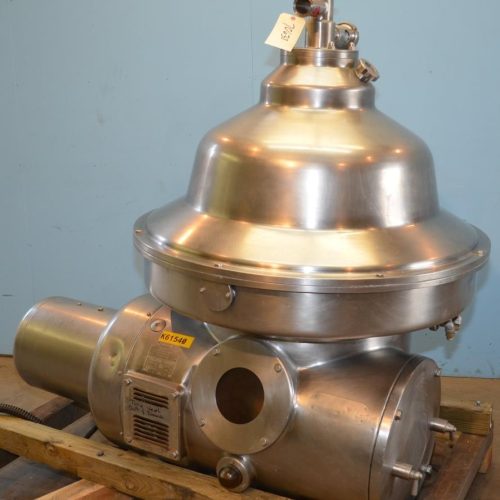

Westfalia Model KSA2001076 Stainless Steel Double Cream Fresh Cheese Centrifugal Separator. 2,300 kg/h finished product capacity of double cream fresh cheese. 4,500 rpm Bowl Speed, 26 kw motor. This separator has been designed for the production of double cream fresh cheese from fat milk of 8 to 12 percent fat content. The exact capacity is dependent on the parameters of raw and finished product. The self-cleaning bowl makes the machine suitable for fully automatic cleaning inplace. Opening and closing of the bowl for discharging the solids takes place hydraulically using water. The product is fed into the machine through a closed-line system. Double centripetal pumps likewise discharge the heavy and light phases in a closed system. The product feed and discharges in the bowl are hydrohermetically sealed and do not feature mechanical seals. The product connections can be designed according to DIN 11851 or ISO 2852 (TriClamp). The machine is driven by a 3-phase AC motor via a hydraulic clutch and a worm wheel gear. All product contacting parts are made of stainless steel. Feed pressure 0.5 bar. Useful discharge pressure 3 bar. Operating water 150 l/hr. 26kW, 460V, 3 Ph, 60 Hz, 42 Amp, 1750 RPM.
