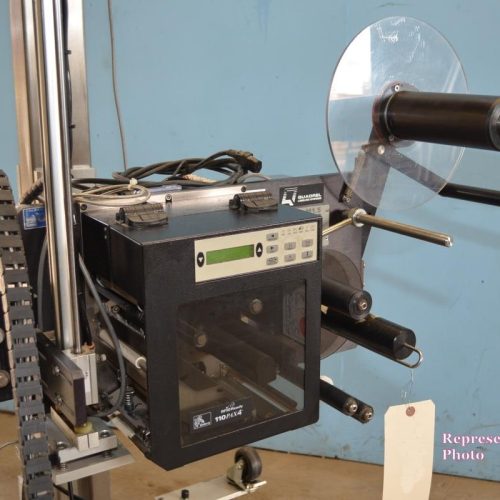

Quadrel Model Q31 Tamp Print and Apply Labeler with Zebra 110PAX4 Print Engine
| Loeb # |
71127 |
Model |
Q31 |
| OEM |
Quadrel Labeling System |
| Year |
2005 |
Serial |
5661502 |
| Electrical |
1/120/60 |
Location |
M-23 |
| Condition |
As is |
Size |
0.00 |
| Lease for only |
63.80 / mo. |
Rent for only |
N/A |
Have one of these to sell?
ITEM SOLD: Need One Of These?
Quadrel Model Q31 Tamp style print and apply labeler with 4 in L x 4 in W tamp pad. Label capacity: 7 in W, 12 in Maximum OD unwind, 12 in diameter reel with 3 in diameter core. Microprocessor controlled with LED interface, continuous duty rewind motor and 1/2 in aluminum side plated construction, permanently lubricated sealed bearings, 3/4 in bore linear slide air cylinder and quick disconnect pneumatics. PLC compatible. Photoelectric label sensing and product detection. 120 VAC, 10 Amp, 60 Hz, 70 PSI at 5 CFM. With Zebra model 110PAX4 print engine. Minimum media width (label and liner) 0.63 in, maximum media width 4.5 in. Minimum label length 0.5 in with backfeed on, 0.25 in with backfeed off (Non RFID applicator mode and tear off mode), 0.25 in (Non RFID rewind mode). Registration tolerance +/-0.04 in vertical and horizontal. Interlabel gap minimum 0.079 in, Preferred 0.118 in, Maximum 0.157 in. Total thickness including liner 0.0058 in to 0.010 in. Notch 0.25 in W x 0.12 in L. Print line to peel bar distance 0.464 in. Ribbon thickness 4.5 microns. Ribbon width 1 in – 4.2 in. Maximum ribbon length 2955 ft. Maximum roll size 4 in with inner core diameter of 1 in. Resolution 203 DPI or 300 DPI. Maximum print speed 12 ips (203 DPI) or 8 ips (300 DPI). Maximum print width 4.1 in (203 DPI) or 4.2 in (300 DPI). Maximum print length non-continuous 39 in (203 and 300 DPI), continuous 150 in (203 DPI) or 100 in (300 DPI). Mounted on S/S portable adjustable T-stand up to 55 in H.
