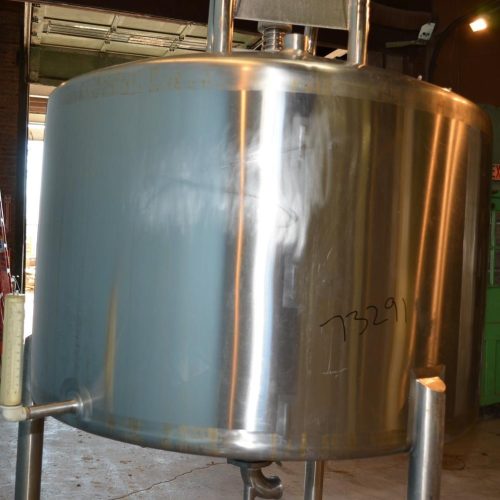

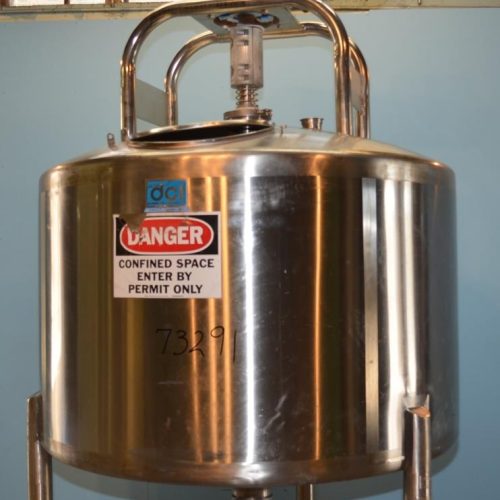

500 Gallon DCI S/S Vertical Single Wall Sweep Agitated Dish Top, Cone Bottom Tank

Loeb # 73291 Model
OEM D C I Incorporated
Year 1993 Serial 93D47301A
Electrical 3/460/60 Location Y-02
Condition Running Size 500.00
Lease for only 318.99 / mo. Rent for only N/A
Have one of these to sell? ITEM SOLD: Need One Of These?
500 Gallon DCI Vertical 304 S/S Single Wall Sweep Agitated Dish Top, Cone Bottom Tank. Top Mounted Sweep Agitator, (2) Side Mounted 4 1/2 W by 30 in L Internal Baffles, (2) Bottom Mounted 4 1/2 W by 22 in L Internal Baffles, (1) Top Mounted Adjustable 24 in L by 6 in W Internal Baffle, 10 in Deep Cone Bottom with (1) 3 in Diameter Tri-Clamp Outlet, 24 in Discharge Height, 7 in Deep Closed Dome Top with 18 in Manway, 61.5 in Inside Diameter, 36 in Straight Side, (1) 3 in Tri-Clamp Top Inlet, (1) 2 in Tri-Clamp Top Inlet, (1) 3 in Vent, (3) 40 1/2 in H S/S Pipe Legs, Temperature Probe, 230/460 V (wired 460 V), 3 Ph, 60 Hz, 1700 RPM, Gear Box Ratio 20.
