25,000 Gallon Trinity Ind Stainless Steel Horizontal Single Wall Pressure Tank

Loeb # 68350 Model
OEM Trinity Industries
Year 1993 Serial D38102
Electrical Location Illinois
Condition As is Size 23,000.00
Lease for only 2,096.25 / mo. Rent for only N/A
Have one of these to sell? ITEM SOLD: Need One Of These?

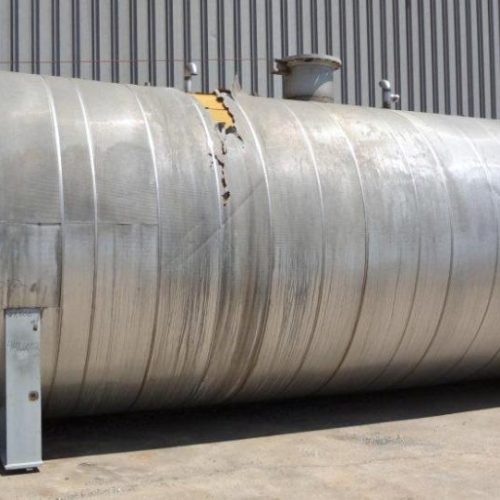

25,000 gallon Trinity Ind T304 L stainless steel horizontal single wall pressure tank. Approx 11.5 ft Diameter x 30 ft Straight Side. ASME Dished Heads. Internal Rated 43 PSI at -20 to 250 Degrees F. Head is 3/8 in Minimum Thickness, Shell 1/2 in and 1/4 in Thickness. National Board Number 6480. U Stamped. Insulated. Has 304L S/S internal pipe coil rated 150 psig at 250 degrees F. Approx 20 in manway on front head and on the top of the shell, both with bolt on covers. 4 in end bottom outlet and (2) 3 in flanged outlets on opposite end. Mounted on Carbon Steel Saddles.

Equipment Gallery

25,000 Gallon Trinity Ind Stainless Steel Horizontal Single Wall Pressure Tank
